6061 T6 Aluminium Chequered Sheet
6061 T6 Aluminium Chequered Sheet

6061 T6 Aluminium Chequered Sheet

Thickness:0.25-2.5mm
Port of Destination:Any port you like.
Consultation Service hotline
0769-85391069

Properties

In India, they often use the alloy 65032 in train and high-speed rail. After testing, we certify that alloy 6061 T6 is equivalent to 65032 WP in India. So our customer is satisfied and willing to build a business relationship with our company. And the following is the test reports¡¯ information.

ACTUAL MILL CHEMICAL UNIT:%




Alloy No. Temper Si Fe Cu Mn Mg Zn Ti Cr Others Al
Single Total
MAX
0.8 0.7 0.4 0.8 1.2 0.2 0.2 0.1 - - REMAIN
MIN
0.4 - 0.15 0.2 0.7 - - - 0.05 0.15 REMAIN
6061 T6 0.628 0.457 0.232 0.311 1.131 0.013 0.041 0.035 0.05 0.15 REMAIN
6061 T6 0.629 0.399 0.239 0.333 1.065 0.01 0.039 0.021 0.05 0.15 REMAIN
MECHANICAL PROPERTY TEST REPORTS


Alloy No. Temper Specified(mm) Yield strength Tensile strength Elongation
(MPa) (KSI) (MPa) (KSI) (%)
MAX
MAX - - -
MIN
MIN 235 280 6
6061 T6 2.03*1250*3000 266 327 9
6061 T6 5.0*1000*2000 285 310 15

The specification of 6061 aluminum checkered plate by Xiongshi Aluminum:

Temper: H*2, H*4, T4, T6

Thickness: 1.2-7.0mm

Width: 100-1650mm

Length: 500-16000mm

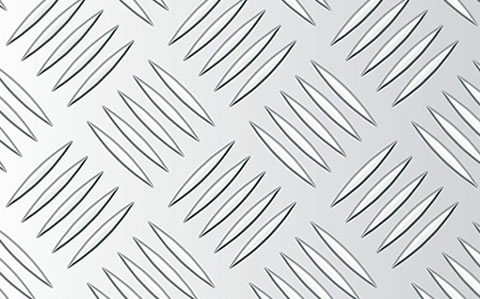

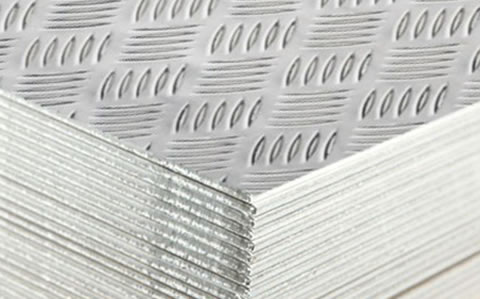

Aluminum checker plate, also known as embossed aluminum plate or non-slip aluminum plate, which is one of featured products of Xiongshi Aluminum. Our aluminum checker plate products include 1xxx series, 3xxx series, 5xxx series, 6xxx series aluminum checker plate. Xiongshi Aluminum can produce one bar, two bars, three bars, five bars aluminum checker plate. The aluminum checker plate is widely used in non-slip floor, decorative and other fields of construction, vehicles, ships, trains, high-speed rail and other fields. Outstanding quality of products makes Xiongshi¡¯s aluminum checker popular in the domestic and international markets.

Applications
